| ब्रांड नाम: | XHS/Customize |
| मॉडल संख्या: | अनुकूलित करना |
| एमओक्यू: | 10 |
| मूल्य: | 50-100USD |
| भुगतान की शर्तें: | टी/टी |
| आपूर्ति करने की क्षमता: | 10000-100000pcd / सप्ताह |

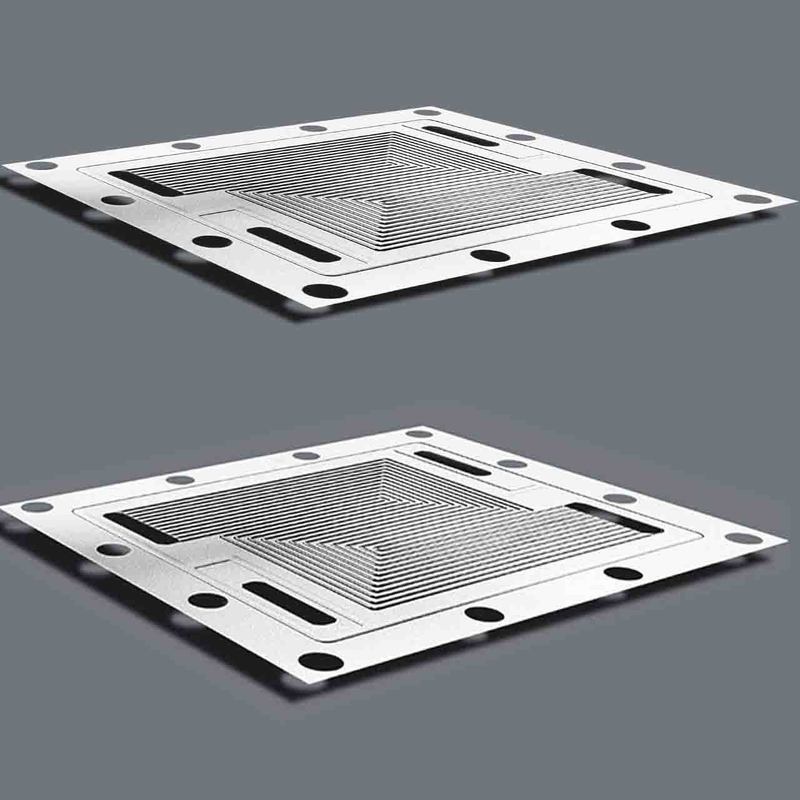

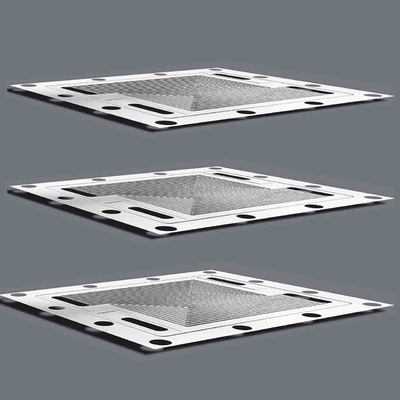

Photochemical Etched Printed Circuit Heat Exchanger Plates Customized
Product Overview
Xinhsen provides high-performance Photochemically Etched (PCHE) Heat Exchanger cores and plates for extreme thermal management applications. Our precision etching technology enables complex microchannel designs with superior heat transfer efficiency and reliability in demanding environments.
Key Features
1.Microchannel Precision
2.High Pressure/Temperature Resistance
3.Material Versatility
4.Compact Design
5.Diffusion Bonding Ready
Technical Specifications
| Parameter | Capability |
|---|---|
| Plate Thickness | 0.5mm – 5mm |
| Operating Pressure | Up to 1000 bar |
| Material | SS316,Titanium, etc. |
| Core Size (Custom) | Up to 650mm × 1800mm |
Applications
·Energy: Supercritical CO₂ cycles, nuclear reactors, hydrogen systems.
·Aerospace: Fuel/oil cooling, ECS, avionics thermal management.
·Industrial: Gas processing, chemical reactors, waste heat recovery.
·Electronics: High-power server cooling, EV battery thermal systems.
Our Advantages
·Precision Etching: Achieve complex channel geometries impossible with machining.
·Rapid Prototyping: Sample delivery within 2-3 weeks.
·Cost-Effective: No tooling costs, ideal for custom designs.
·Quality Assurance: ISO 9001-certified production with strict leak/pressure testing.
·End-to-End Support: From design optimization to diffusion bonding assistance.
Are you interested? Welcome to contact us for an order!
